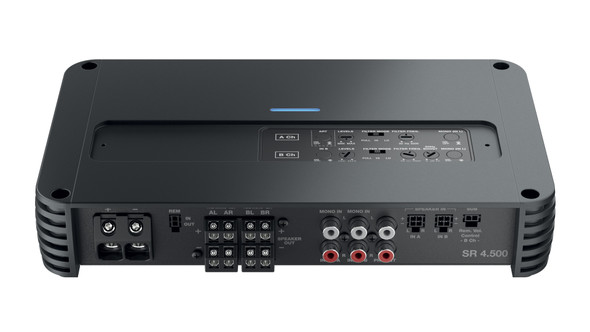

| SP 4.500 - SPL SHOW D-CLASS 4 CH AMPLIFIER 4x150W | |
| Channels | 4 |
| Ch 1-2 Filters: Full <br> Hi-pass: 50 ÷ 5k Hz @ 12 dB/Oct. <br> Lo-pass: 50 ÷ 5k Hz @ 12 dB/Oct. | |
| Power Supply Voltage | 11 ÷ 15 VDC |
| Stage Bandwidth | 10 Hz ÷35 kHz |
| Stage Distortion | <0.02% |
| Stage Sn Ratio | 100 dBA |
| 191.6 x 130 x 49mm | |
| Bass Boost | 45Hz (adjustable) OUT 3 -4 (0 ÷ 8 dB) [LP = ON only] |
| Output Power (Rms) @ 14.4 Vdc | 4Ch 90 W x 4 (4Ω) 4Ch 150 W x 4 (2Ω) 3Ch 80 W x 2 (4Ω) + 330 W x 1 (4Ω) 3Ch 145 W x 2 (2Ω) + 300 W x 1 (4Ω) 2Ch 300 W x 2 (4Ω) Total Power RMS 600 W |
| 600 W | |
| 150 W x 4 (2Ω) | |
| D-class | |
| hertz | |
| 600 | |
| 150 W x 4 (2Ω) |
